Roto-Bin-Dicator®
The Roto-Bin-Dicator® is the most universal of all level
sensing technologies and is the most popular level switch used
in dry bulk materials. The Roto-Bin-Dicator® is a rotating
paddle type, bulk material level sensor offered in a wide variety
of paddle options for unequaled application versatility. It
is easy to install and requires no special tools or calibration.
Original
Roto-Bin-Dicator® models for Low Level Fail Safe
protection.
Super-Safe-Plus models
for High Level Fail Safe requirements.
Mini-Roto for
tight spaces.
RF Series
The Bindicator® RF (Radio Frequency) Series is a family
of point level switches used to detect the presence or absence
of material at a point inside a tank, bin or other vessel.
The RF Series is used for high and low level detection in thousands
of applications from bulk solids to slurries and liquids. Bindicator®’s
unique calibration technology overcomes problems associated
with other capacitance probes. The Pro-Guard® feature
cancels out the effects of material coating on the probe, preventing
false indications. All Bindicator® integral RF units have
remote versions. Remote models separate the electronics from
the RF probe, where conditions could be harmful.
The premier RF-9200
integral and RF-12000
remote unit, as well as 14 other models, are each available
with many options and accessories. Remote
models are available for high temperature or high vibration
applications. When combined with our large selection of probes,
we have an RF sensor for virtually every application.
Standard Probe - Solids, powders and liquids
in tanks and bins.
Stub Probe - Small hoppers and vessels.
Flush/Dome Flush - Plugged chute detection;
where bridged material may shear or bend other probes when
material shifts; coal applications or where slightly conductive
coatings may occur.
Cable Probe - Designed for high, mid, or
level indication when top mounting is necessary.
Ceramic Probe - For extreme
temperatures up to 1000° F (538° C); provides protection
because electronics are mounted remotely from the probe.
Pulse Point™
The Pulse Point™ is an electronic vibratory level control
especially effective in lightweight powders and granular solids.
Because the Pulse Point™ senses material using a mechanical
principle, the dielectric constant of the material is irrelevant. Remote
models are available for high temperature or high vibration
applications.
LP-30 includes
dual conduit entry for ease of installation as well as the
separation of input wiring and alarm wiring.
The LP-100 is
a self contained level switch with external lights, magnetic
test fob feature and a remote counterpart, LP-200.
Bin-Dicator® (diaphragms)
The original electromechanical point level
switch, Bin-Dicator® diaphragm-type
level controls were the first to enjoy general usage in the
industry. Bin-Dicator® controls eliminate bin overflow,
empty bins, clogged conveyors, choked elevators and resultant
damage and waste.
Model “A” Bin-Dicator® for
light, heavy or explosive materials.
Auto-Bin-Dicator® with
a stainless steel diaphragm for exterior, side of bin mounting.
Bantam Bin-Dicator® for bins, hoppers
and chutes of limited size.
Phase Tracker™
Bindicator's patented Phase Tracker technology is designed
to solve the most challenging continuous level applications.
Phase Tracker is ideal for the measurement of level of solids,
liquids and slurries. Phase Tracker can accurately and reliably
measure the level of bulk solids and powders during the fill
cycle, regardless of dust or material variations in density
or moisture. It is effective in foam, non-air vapor, fumes,
abrasives and corrosives, as well as corrugated bins and tall,
narrow silos.
A Phase Tracker system consists of
a control unit and up to 24 sensors. The control unit is
usually mounted in a central location and can be connected
to external systems through a number of process connections
including a telephone modem. The sensors are powered by the
control unit and can be mounted up to 400’ (121.9m)
from the control unit. The exact options installed on each
control unit are selected to match the needs of the installation.
The model of each sensor is selected based on the range of
products that will be stored in the vessel. i-level™ Inventory
Manager Software may be used with Phase Tracker systems to
provide up to the minute, real time silo levels at a glance.
-LEVEL™ provides
easy windows interface to view numerical and graphical data
generated by Phase Tracker level systems. Data is updated
in real-time as it is received from the control unit. With
features such as trending, multi-system windows, and remote
access via modem, i-LEVEL™ provides
operators and managers with up-to-the-minute level and inventory
information.

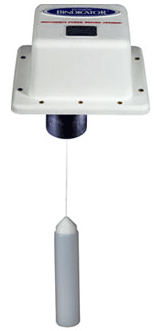

Yo-Yo®
The Bindicator® Yo-Yo® is a reliable continuous weight
and cable level measurement system designed especially for
dry bulk materials. It’s an electromechanical sensor
which is mounted on top of a vessel.

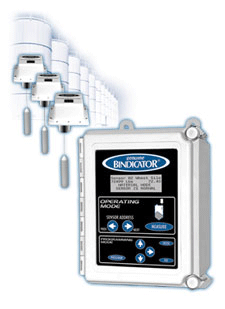

The new GP-4 Yo-Yo® Inventory Management System consists
of the GP-4 Yo-Yo® Sensor and NEMA 4X Remote Display.
The Mark-4 Yo-Yo is a heavy duty inventory management system
with analog capabilities.

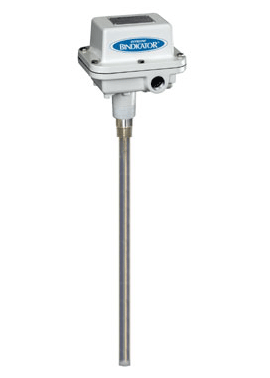

Cap-Level®
Cap-Level® is an excellent choice for continuous level
measurement. Cap-Level® uses the proven method of capacitance
change to determine the level of product in the vessel. This
translates into an accurate and dependable measurement device
for your process. Simply stated, as the level of product in
the vessel changes, the capacitance between the probe and the
vessel wall also changes. The solid-state electronics of the
Cap-Level® continually measures and compares this change
to a very stable reference circuit, and provides accurate
and dependable output signal (4-20 mA) proportional to the
vessel contents.
The “industry standard” 4-20 mA output is provided
with a selectable dampening function to stabilize readings
where severe agitation is present. Simple zero and span adjustment
make calibration easy. The probe configurations and materials
offered allow you to custom fit Cap-Level® to your application.
Cap-Level II is a 4-wire transmitter with 120 or 240 VAC while
the Cap-Level IIA is a 2-wire transmitter with 24VDC.
